Deal Direct & Save
OzCharge® Lithium LifePO4 batteries are available online only and not instore. With factory direct pricing and factory direct shipping, all savings are directly passed onto our customers ensuring you're always getting the best deal.

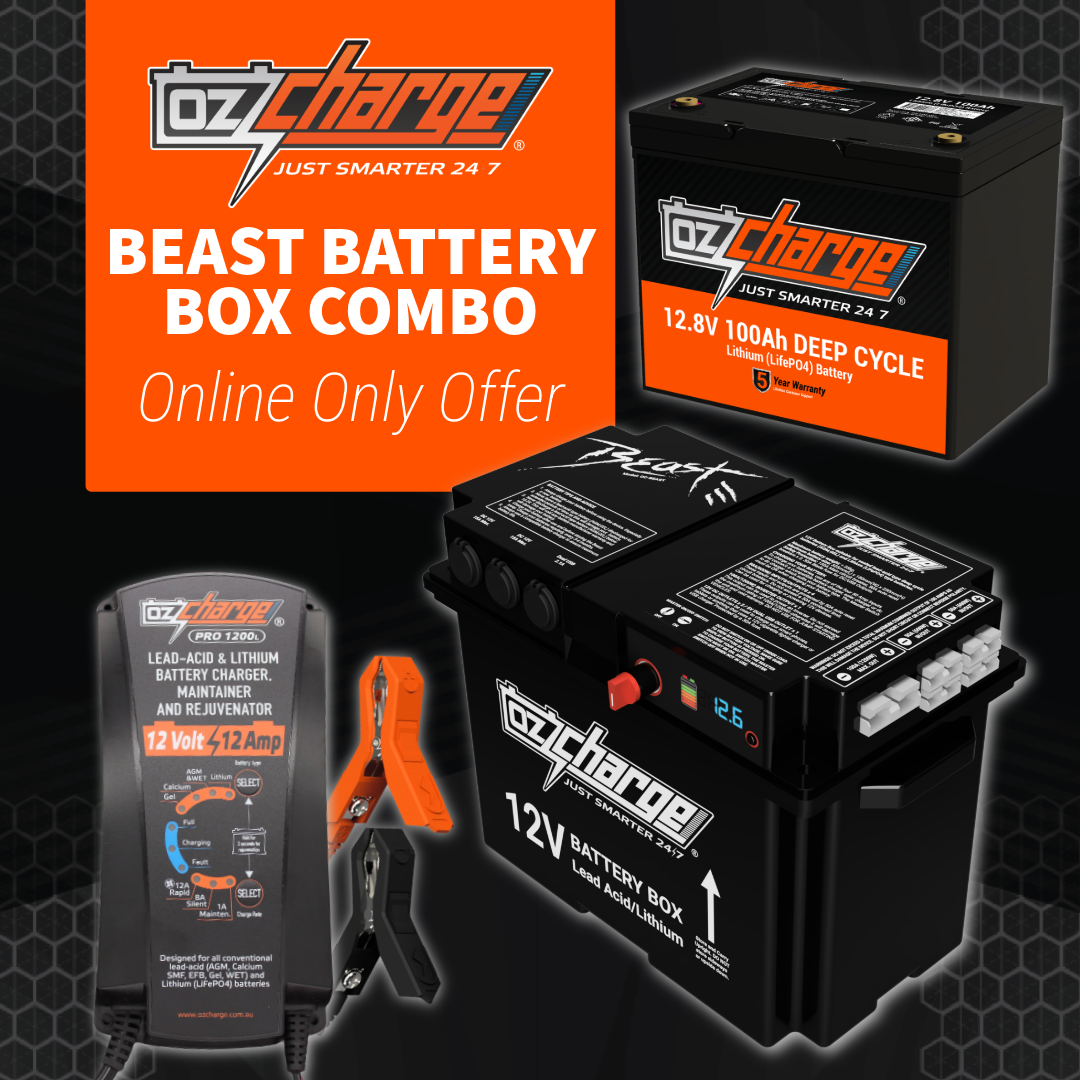

The OzCharge Beast 100L12A Battery Box Combo comes with the latest OzCharge Deep Cycle Lithium LifePO4 Battery and the OC-PRO1200L 12A Lithium Battery Charger.
OCBL-12-100 - 12V 100Ah Lithium LifePO4 Deep Cycle Battery (11.5kg)
OC-PRO1200L - 12V 12A Lithium Pro Series Battery Charger.
Battery Box Specifications
Maximum battery weight supported: < 35kg.
Maximum battery size supported: 325mm(L) x 180mm(W) x 230mm(H)
Battery Box External Dimensions: 440mm(L) x 240mm(W) x 322mm(H)
Battery Box Weight (No battery fitted): 3.8kg
Total Weight (When 100Ah battery fitted): Approx. 15.3kg
Battery Box Warranty: 2 Years
100Ah Lithium Battery Warranty: 5 Years
PRO1200L 12A Lithium Charger Warranty: 5 Years
Safety Protection: 150A Main circuit breaker, 50A auto reset breakers x 2 for 50A Inputs/Outputs, 30A Blade fuse for DC/USB Outputs.
50A(600W) INPUTS/OUTPUTS x 4
These inputs and outputs are protected by 50A auto reset circuit breakers. Do not exceed a 50A combined limit.
Can be used for charging or powering 12V devices.
100A(1200W) INVERTER OUTPUT x 1
This output can be used to power an Inverter. Do not exceed the maximum rating of 100A(1200W) otherwise it will damage the unit and void warranty. DO NOT USE FOR JUMP STARTING VEHICLES.
Note: This device does not contain an Inverter. It contains an Output to power up an external inverter.
12V DC OUTLETS x 2 / 5V DUAL 2.1A USB OUTLET x 1
These outputs can be used to charge your smart phones, tablets or anything that uses a 12V cigarette lighter charger or USB charger. Protected by a 30A fuse.
CHARGING YOUR BATTERY.
To charge your battery, use any of the four 50 Amp Inputs and connect a compatible battery charger, solar charger or dc to dc charger which suits the supplied Lithium Battery. The Master Switch must be ON when charging your battery. Note: We include a 50A to PP30A adapter to suit the PRO1200L charger which is included.
What’s included.
1 x Beast Battery Box
1 x OCBL-12-100 - 12V 100Ah Lithium LifePO4 Deep Cycle Battery
1 x OC-PRO1200L - 12V 12A Lithium Pro Series Battery Charger.
1 x Hold / Tie down mounting brackets and strap
1 x OC-50A-SAE : 150mm 50A to SAE adapter for charging. (Suits OzCharge OC-PRO600L).
1 x OC-50A-PP30 : 150mm 50A to PP30 adapter for charging. (Suits OzCharge OC-PRO1200L charger which is included).
Optional Accessories.
OC-RT175A : 1200mm 175A to Ring Terminal Lead. (Suitable for powering external Inverter. 1200W Max)
5 Year Pro-Rata warranty (Lithium Battery)
Whilst the OzCharge® Lithium range comes with a 5 Year Manufacturer’s Warranty against major defects and workmanship, the life of an OzCharge® Lithium battery will be very much determined by the Depth of Discharge (DOD) and the number of cycles. The OzCharge® Lithium range is rated at 3000 cycles to 80% DOD (i.e. you have used 80% of the battery capacity and have just 20% of the energy remaining). If only discharged to 50% DOD once a day the battery could last for many years beyond the warranty. You may get a service life of up to 10 years.
How Pro-Rata Warranty works?
If your OzCharge Lithium Battery fails during the warranty period, the cost of replacement or repair is calculated based on the remaining time of the warranty or in other words, the amount of time you have used the battery rather than the full price of the product.
For Example: OzCharge Lithium batteries come with a 5-year warranty, but fails after 3 years. A pro-rata warranty would mean that you'd only receive a partial credit or discount towards a replacement, based on the remaining 2 years of the warranty.
* Note: The LCD Display battery level indicator is to be used as a guide only. State of charge voltage levels for Lithium versus Lead Acid Type AGM, Gel batteries will vary between batteries.
