Product Description

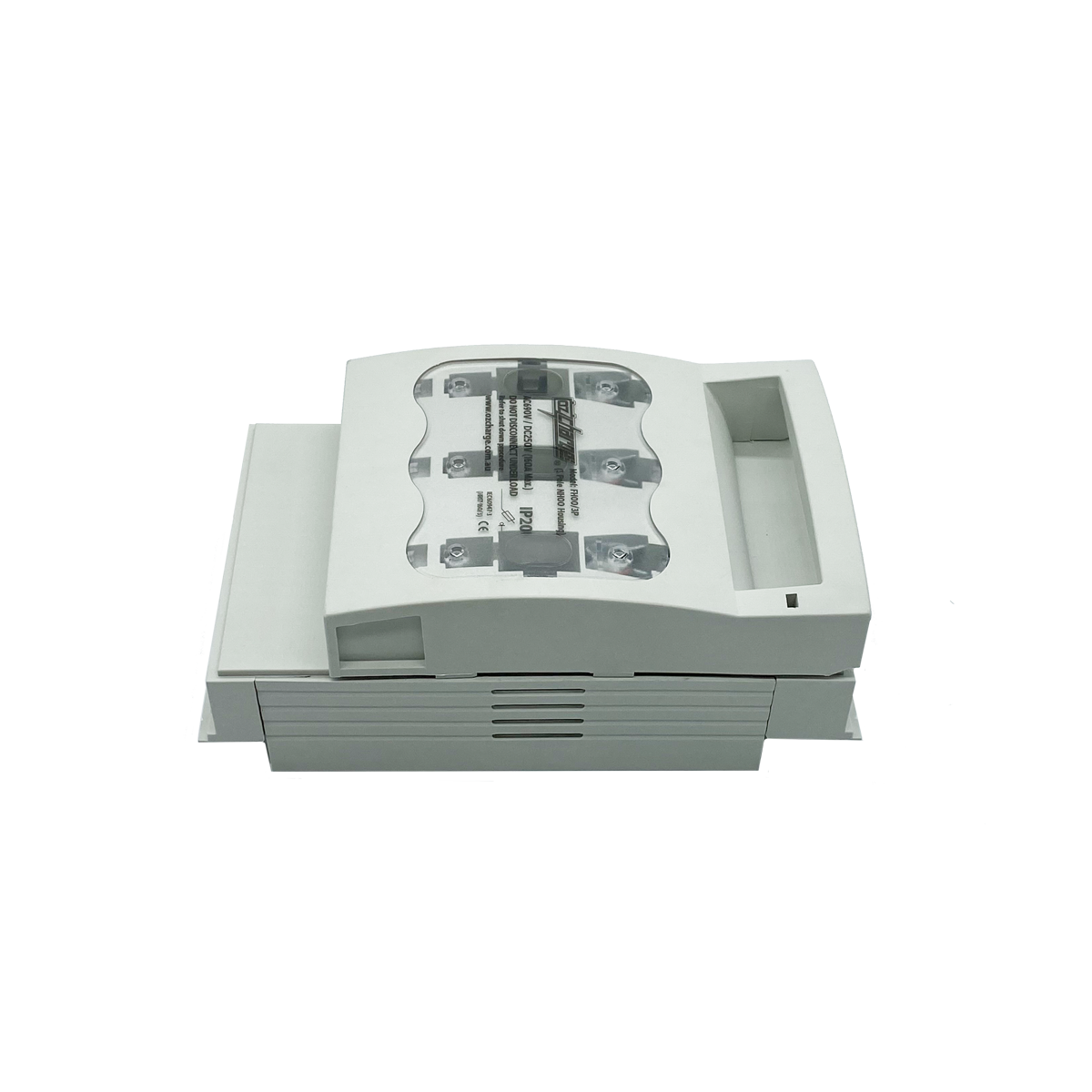

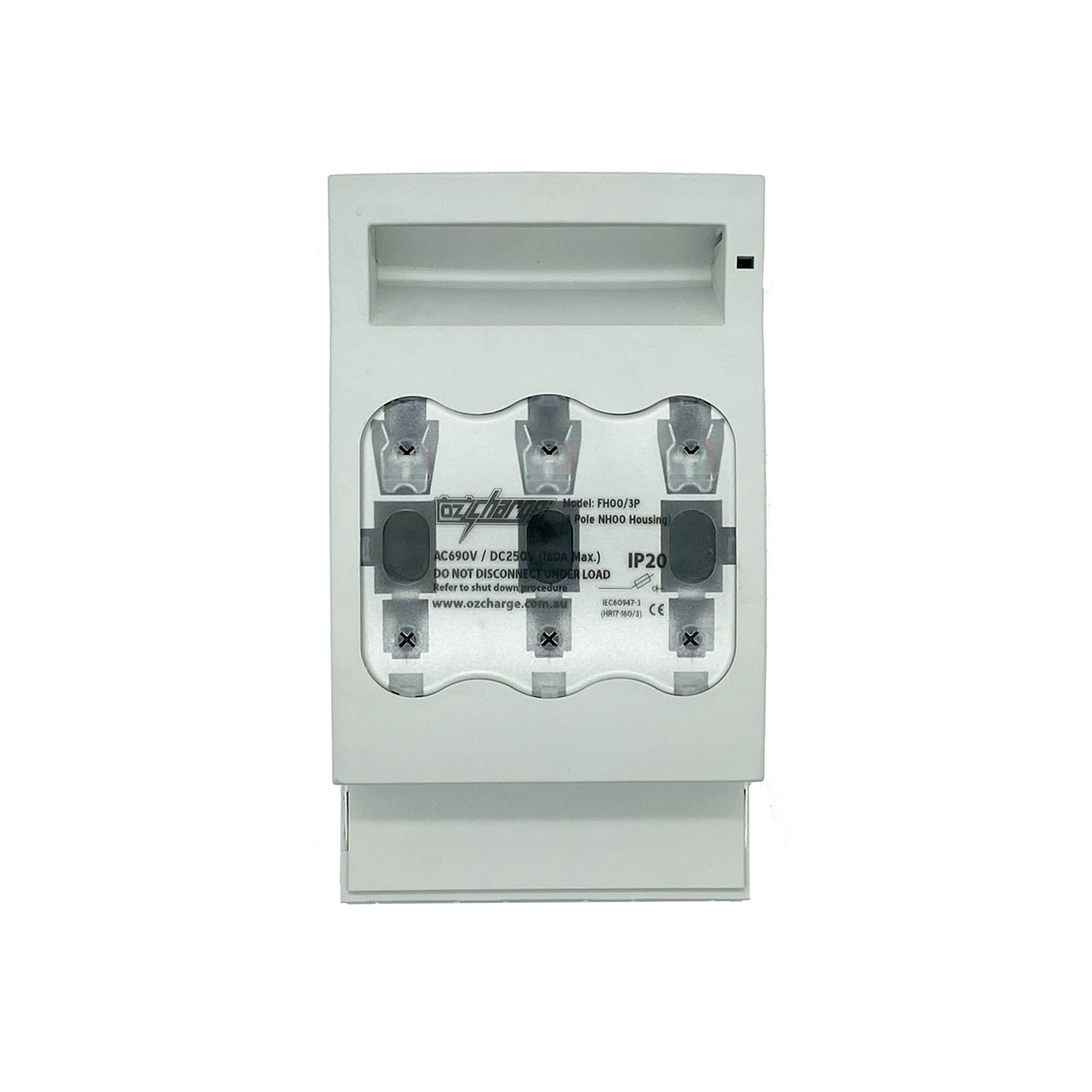

OzCharge FH00(NH00 Type) 160A 3 Position Fuse Housing Battery Disconnect / Isolator for battery and PV protection.
AC690V / DC250V (160A Max)
IP rating: IP20*
Terminal size: M8 Thread
Standard: EN60947-3:2015
Dimensions: 106(W) x 200(H) x 82.5(D) mm
*Note: Front Degree of protection is IP20. To ensure IP20 rating, no gap around the wires entry and exit points must exceed 12.5mm.
Product may come DCSA branded with Blue Cover instead of Clear OzCharge Cover.
Related Products
FH-00/32A
FH00-Series Fuses (NH00 Type) - 160A Max
$6.50 AUDProduct Description
Fuses to suit FH-00/3P (NH00 Type) housing.AC690V - 50kADC250V - 100kAAvailable Sizes: 32A, 50A, 63A, 80A, 100A, 125A, 160A.Standard: EN60269-2:2013Price shown for single item: Carton Qty. 3pcs.
FH-01/3P
250A 3-Pole FH01(NH1) Fuse Housing
$165.00 AUDProduct Description OzCharge FH01(NH1 Type) 250A 3 Position Fuse Housing Battery Disconnect / Isolator for battery and PV protection.AC690V / DC440V (250A Max)IP rating: IP20*Terminal size: M10 ThreadStandard: EN60947-3:2015Dimensions: 184(W)...
FH-01/63A
FH01-Series Fuses (NH1 Type) - 250A Max
$14.00 AUDProduct Description
Fuses to suit FH-01/3P (NH1 Type) housing.AC690V - 50kADC250V - 100kAAvailable Sizes: 63A, 80A, 100A, 160A, 200A, 250AStandard: EN60269-2:2013Price shown for single item: Carton Qty. 2pcs.
FH-02/3P
400A 3-Pole FH02(NH2) Fuse Housing
$215.00 AUDProduct Description OzCharge FH02(NH2 Type) 400A 3 Position Fuse Housing Battery Disconnect / Isolator for battery and PV protection. AC690V / DC440V (400A Max)IP rating: IP20*Terminal size: M10 ThreadStandard: EN60947-3:2015...
FH-02/200A
FH02-Series Fuses (NH2 Type) - 400A Max
$21.00 AUDProduct Description
Fuses to suit FH-02/3P (NH2 Type) housing.AC690V - 50kADC440V - 100kAAvailable Sizes: 200A, 250A, 315A, 400AStandard: EN60269-2:2013Price shown for single item: Carton Qty. 1pc.
FH-03/3P
630A 3-Pole FH03(NH3) Fuse Housing
$295.00 AUDProduct Description OzCharge FH03(NH3 Type) 630A 3 Position Fuse Housing Battery Disconnect / Isolator for battery and PV protection.AC690V / DC250V (630A Max)IP rating: IP20*Terminal size: M12 ThreadStandard: EN60947-3:2015Dimensions: 256(W)...
FH-03/400A
FH03-Series Fuses (NH3 Type) - 630A Max
$27.40 AUDProduct Description
Fuses to suit FH-03/3P (NH3 Type) housing.AC690V - 50kADC440V - 100kAAvailable Sizes: 400A, 500A, 630AStandard: EN60269-2:2013Price shown for single item: Carton Qty. 1pc.
FH-1038-2P
2 Pole 10 x 38 Fuse Holder
$17.60 AUDProduct Description
2 Pole Fuse Holder 10 x 38mm800V AC, 30A 200kA1000VDC, 30A 100kAMax. Wire Siz: 6AWG (10mm2)Price shown for single item: Carton Qty. 6pcs.
FH-10A
10 x 38mm Fuses
$4.50 AUDProduct Description
10 x 38mm to suit FH-1038-2P Fuse Holders.Available in 10A, 15A and 20A.Price shown for single item: Carton Qty. 20pcs.
FH-BUSBAR2P63A
2 Phase Busbar 63A 1.0 Metre Long
$55.00 AUDProduct Description
2 Phase Busbar 63A 1 metre
* Product Specifications subject to change without notice.
