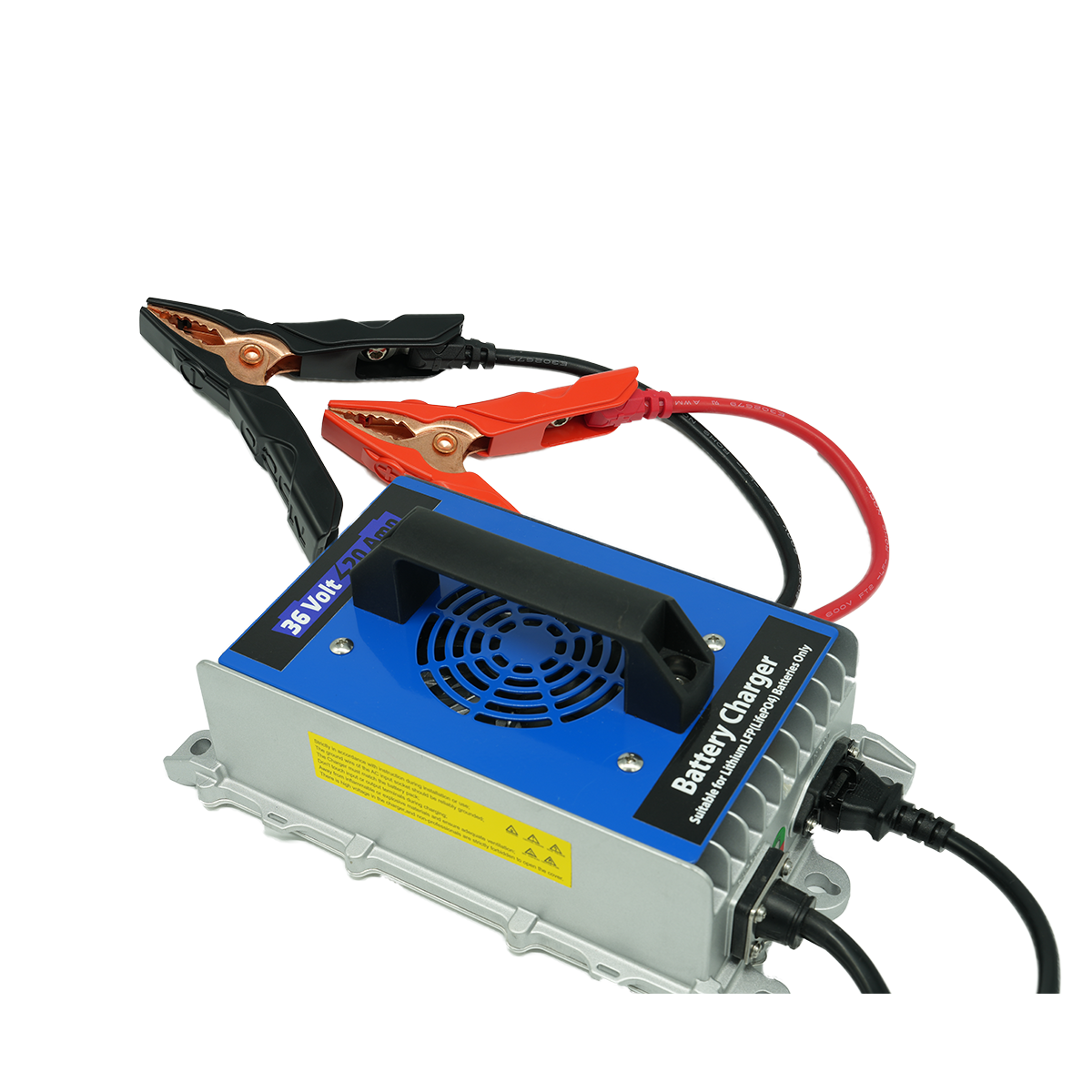

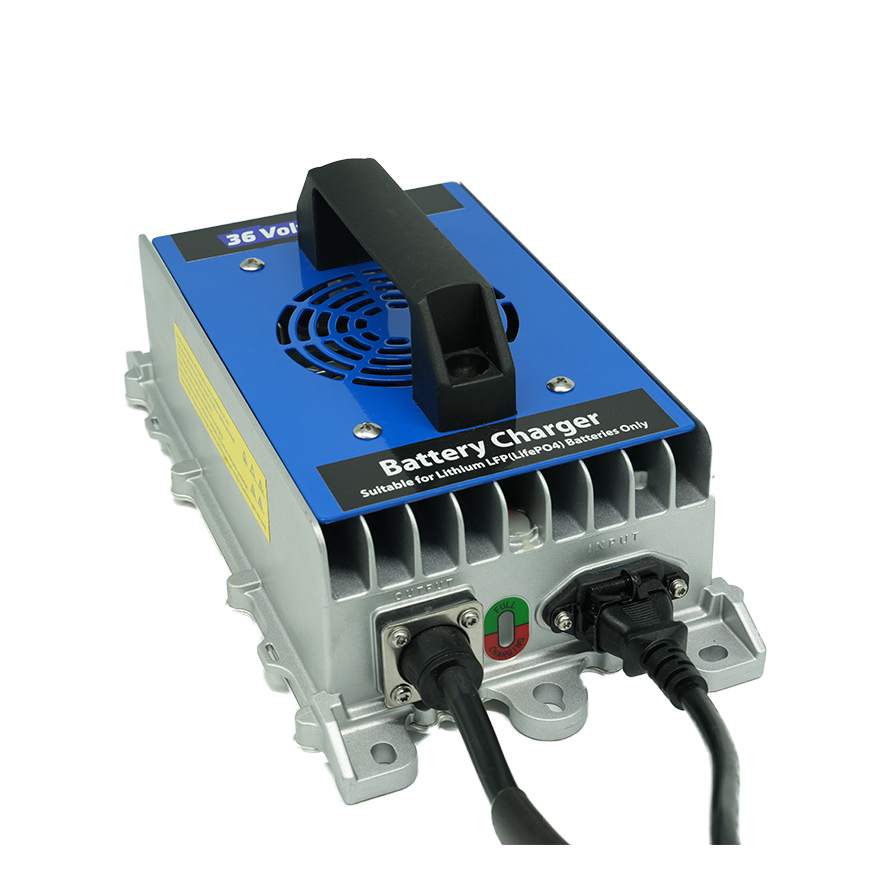

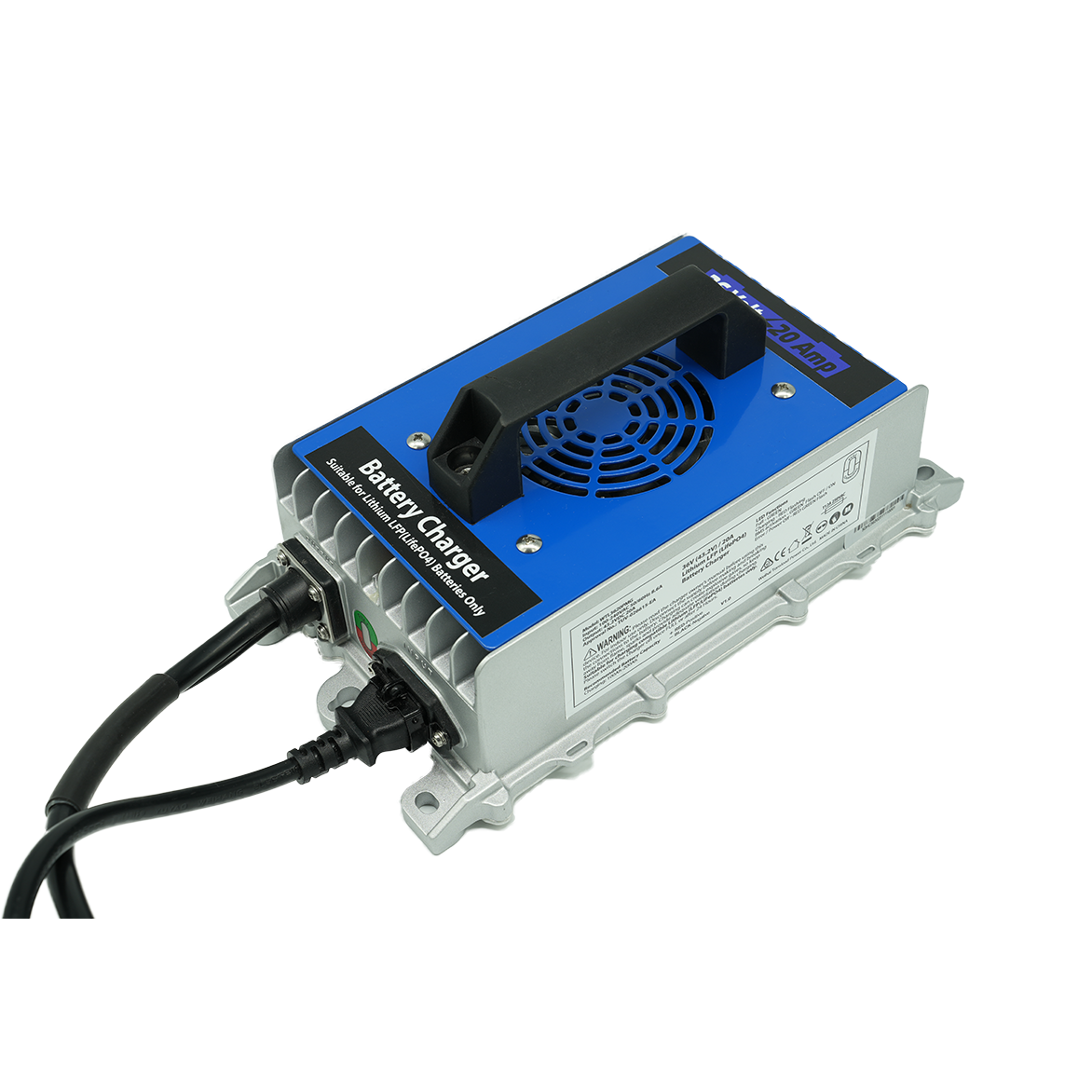

On-Board 36V 20A High-Precision Marine Lithium Battery Charger
The OzCharge On-Board 36V 20A High-Precision Marine Lithium Battery Charger is designed for Lithium LFP (LifePO4) batteries 36V 100Ah Lithium LifePO4 Deep Cycle Battery. Get the quickest, most intelligent, and efficient charge for your battery.
This charger offers users extended battery life and reliability with its built-in protection and innovative safety features.
Features:
- IP68 Rating
- Charges 36V batteries
- Marine-grade construction
- Overcurrent limit
- High voltage safety
- Reverse connection protection
- Temperature protection
- Anti-Walking function
- LED indicator for Charging Process
- Full-Auto timing shutdown
- 2-Year Warranty
Safety:
- Short-Circuit: Yes
- Open-Circuit: Yes
- Overheating: Yes
- Overcharge: Yes
- Spark-Proof: Yes
- Reverse Polarity: Yes
Size:
- Height: 165.1mm
- Width: 201.3mm
- Depth: 56.0mm
- Weight: 2.7kg
Operating Requirements:
- Line Voltage: 120V to 240V AC
- Frequency: 50Hz to 60Hz
- Operating Temperature: -4° to 104° F (-20° to 50° C)
- Storage Temperature: -22° to 140° F (-30° to 60° C)
- Relative Humidity: 0 to 95% Non-Condensing
Cord Management:
- DC Cable + Eyelet Length: 182cm
- DC Cable Size: 16 AWG
- DC Fuse Size: 7.5 AMP MINI ® Blade Fuse
- AC Cable Length: 72 Inches (182cm)
- AC Cable Size: 18 AWG
- Oil, gas, grease, water, chemical, UV, abrasion resistant
- Red = Negative, Yellow/Green = Ground, Purple = Neutral
