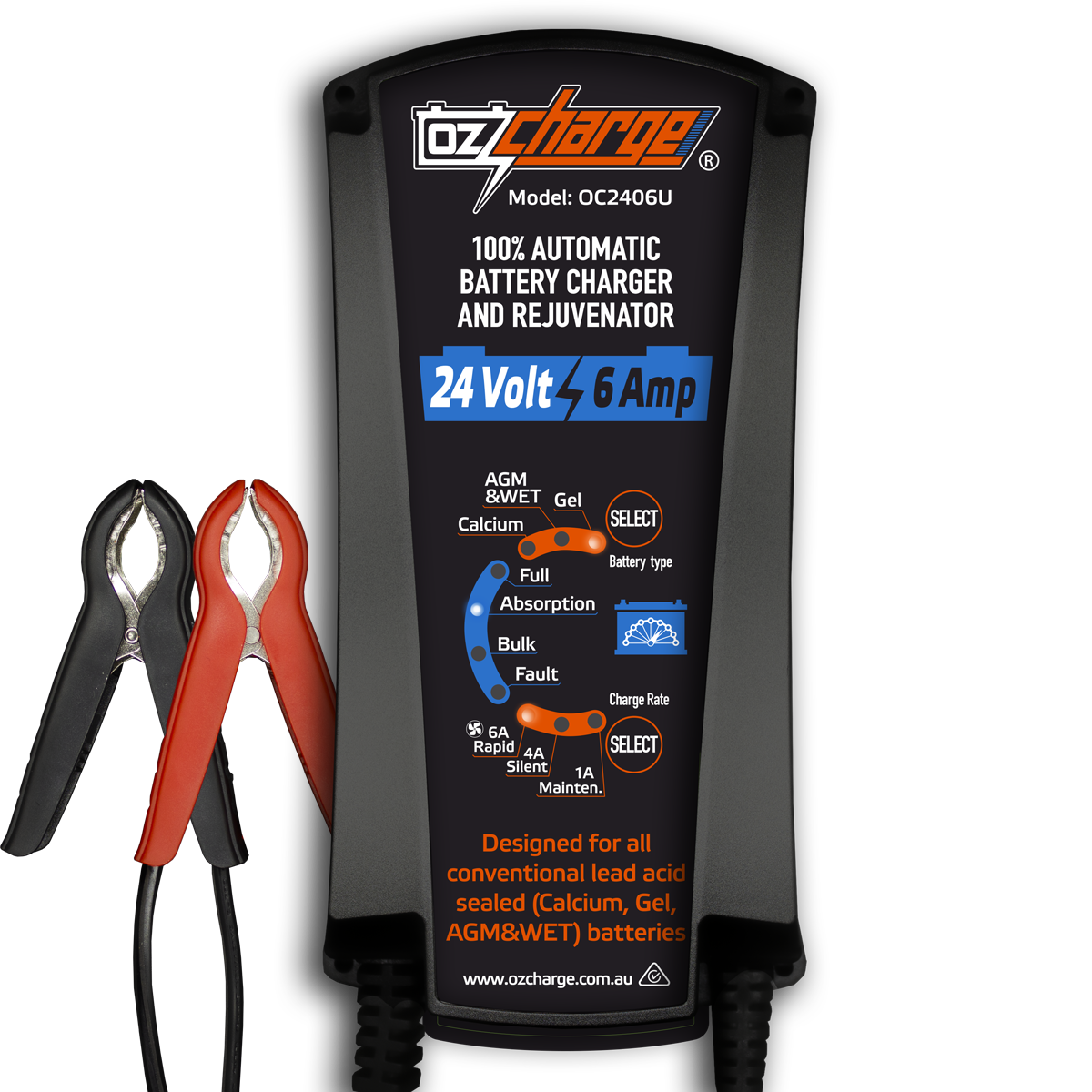

OC-2406U 24 Volt 6AMP Charger & Maintainer and
The OzCharge OC-2406U Battery Charger and Maintainer is designed for lead-acid type 24V batteries (AGM, Calcium SMF, Gel & Wet) from 3Ah to 120Ah. The charger can also be used to maintain batteries up to 180Ah.
The OC-2406U battery charger and maintainer utilises state of the art patented 9 stage technology for safe and efficient charging of a wide range of batteries. The charger is fully automatic allowing the charger to be left on 24/7 with confidence and ensuring that your batteries will perform better and last longer
Selectable Ouput - 6A, 4A, 1A
The OC-2406U features a selectable output allowing you to choose whether to output at: 6A,4A or 1A. This makes the OC-2406U an extremely versatile charger and suitable for a very wide range of batteries.
Selecting the correct charge rate setting for your battery
When using the OC-2406U it is important to select the correct charge rate for the battery you are charging. A common mistake many people make is to select the highest charge rate setting, not realising it may damage the internal components, reducing the battery life. The recommended charging Amps for a flooded lead acid battery is roughly 10% of its Ah rating. For an Absorbed Glass Mat (AGM) or Gel battery this can be increase to 20% of its Ah rating.
If you are unsure of the Ah rating of your battery please check the specifications on the battery or contact your battery's manufacturer
The 1A - maintenance mode - will charge a range of lead acid batteries between 1Ah and 20Ah and will maintain batteries up to 100Ah.
The 4A - silent charge mode - will charge a range of lead acid batteries between 12Ah and 80Ah and will maintain batteries up to 120Ah.
The 6A - rapid charge mode - will charge a range of lead acid batteries between 18Ah and 120Ah and will maintain batteries up to 180Ah. During this mode, the internal fan may engage from time to time if the charger gets hot.
Features:
Replacement / Optional Harnesses.
Crocodile Clip harness - 60cm - Model: OC-CC1-8Ring Terminal harness 8mm (-) / 10mm (+) Terminals- 60cm - Model: OC-RT1-8
Battery Charging vs. Battery Maintenance
What's the difference between the two and which battery charger suit your requirements best? Firstly you need to determine whether you need to recharge a flat battery entirely or just keep a battery at full charge.
Battery charging is when you are requiring to recharge a flat or dead battery to full. Battery maintenance on the other hand is when you just want to keep a battery topped up. For instance, if you're storing a classic car that you only drive a few times a month but want to ensure it's ready to go on a sunny afternoon you would require battery maintenance as opposed to battery charging. This is often referred to as trickle charging a battery. All OzCharge battery chargers perform both functions, and understanding each charger's limits is important.
